| Air Filter Size (Nominal) | Actual Size | Air Filter Size (Nominal) | Actual Size |
| 10x10x1'' | 9.5 x 9.5 x .75'' | 16x24x1'' | 15.375 x 23.375 x .75'' |
| 10x20x1'' | 9.5 x 19.5 x .75'' | 16x25x1'' | 15.5 x 24.5 x .75'' |
| 10x24x1'' | 9.5 x 23.5 x .75 | 16x30x1'' | 15.5 x 29.5 x .75'' |
| 10x30x1'' | 9.5 x 29.5 x .75'' | 16x32x1'' | 15.5 x 31.5 x .75'' |
| 12x12x1'' | 11.75 x 11.75 x .75'' | 17x22x1'' | 16.5 x 19.5 x .75'' |
| 12x16x1'' | 11.5 x 15.5 x .75'' | 18x18x1'' | 17.5 x 17.5 x .75'' |
| 12x18x1'' | 11.5 x 17.5 x .75'' | 18x20x1'' | 17.5 x 19.5 x .75'' |
| 12x20x1'' | 11.5 x 19.5 x .75'' | 18x22x1'' | 17.5 x 21.5 x .75'' |
| 12x24x1'' | 11.375 x 23.375 x .75'' | 18x24x1'' | 17.375 x 23.375 x .75'' |
| 12x25x1'' | 11.5 x 24.5 x .75'' | 18x25x1'' | 17.5 x 24.5 x .75'' |
| 12x30x1'' | 11.625 x 29.5 x .75'' | 18x30x1'' | 17.5 x 29.5 x .75'' |
| 12x36x1'' | 11.5 x 35.5 x .75'' | 20x20x1'' | 19.5 x 19.5 x .75'' |
| 14x14x1'' | 13.5 x 13.5 x .75'' | 20x21x1'' | 19.5 x 20.5 x .75'' |
| 14x18x1'' | 13.5 x 17.5 x .75'' | 20x22x1'' | 19.5 x 21.5 x .75'' |
| 14x20x1'' | 13.5 x 19.5 x .75'' | 20x24x1'' | 19.375 x 23.375 x .75'' |
| 14x24x1'' | 13.375 x 23.375 x .75'' | 20x25x1'' | 19.5 x 24.5 x .75'' |
| 14x25x1'' | 13.5 x 24.5 x .75'' | 20x30x1'' | 19.5 x 29.5 x .75'' |
| 14x30x1'' | 13.5 x 29.5 x .75'' | 22x22x1'' | 21.5 x 21.5 x .75'' |
| 15x20x1'' | 14.5 x 19.5 x .75'' | 24x24x1'' | 23.375 x 23.375 x .75'' |
| 15x25x1'' | 14.5 x 24.5 x .75'' | 24x30x1'' | 23.5 x 29.5 x .75'' |
| 16x16x1'' | 15.75 x 15.75 x .75'' | 25x25x1'' | 24.5 x 24.5 x .75'' |
| 16x18x1'' | 15.5 x 17.5 x .75'' | 30x30x1'' | 29.5 x 29.5 x .75'' |
| 16x20x1'' | 15.5 x 19.5 x .75'' | 30x36x1'' | 29.5 x 35.5 x .75'' |
| 2 Inch Deep Filters | |||
| 10x20x2'' | 9.5 x 9.5 x 1.75'' | 18x20x2'' | 17.5 x 19.5 x 1.75'' |
| 12x12x2'' | 11.5 x 11.5 x 1.75'' | 18x24x2'' | 17.375 x 23.375 x 1.75'' |
| 12x20x2'' | 11.5 x 19.5 x 1.75'' | 18x25x2'' | 17.5 x 24.5 x 1.75'' |
| 12x24x2'' | 11.375 x 23.375 x 1.75'' | 20x20x2'' | 19.5 x 19.5 x 1.75'' |
| 12x25x2'' | 11.5 x 24.5 x 1.75'' | 20x24x2'' | 19.375 x 23.375 x 1.75'' |
| 14x20x2'' | 13.375 x 19.375 x 1.75 | 20x25x2'' | 19.5 x 24.5 x 1.75'' |
| 14x25x2'' | 13.375 x 24.375 x 1.75'' | 20x30x2'' | 19.5 x 29.5 x 1.75'' |
| 15x20x2'' | 14.5 x 19.5 x 1.75'' | 24x24x2'' | 23.375 x 23.375 x 1.75'' |
| 16x16x2'' | 15.5 x 15.5 x 1.75'' | 24x30x2'' | 23.5 x 29.5 x 1.75'' |
| 16x20x2'' | 15.5 x 19.5 x 1.75'' | 25x25x2'' | 24.5 x 24.5 x 1.75'' |
| 16x24x2'' | 15.375 x 23.375 x 1.75'' | 25x28x2'' | 24.5 x 27.5 x 1.75'' |
| 16x25x2'' | 15.5 x 24.5 x 1.75'' | 30x36x2'' | 29.5 x 35.5 x 1.75'' |
| 18x18x2'' | 17.5 x 17.5 x 1.75'' | ||
| 4 Inch Deep Filters | |||
| 12x24x4'' | 11.375 x 23.375 x 3.625'' | 20x24x4'' | 19.375 x 23.375 x 3.625'' |
| 16x20x4'' | 15.375 x 19.375 x 3.625'' | 20x25x4'' | 19.375 x 24.375 x 3.625'' |
| 16x25x4'' | 15.375 x 24.375 x 3.625'' | 24x24x4'' | 23.375 x 23.375 x 3.625'' |
| 18x24x4'' | 17.375 x 23.375 x 3.625'' | 25x29x4'' | 24.375 x 28.375 x 3.625'' |
| 20x20x4'' | 19.375 x 19.375 x 3.625'' | ||

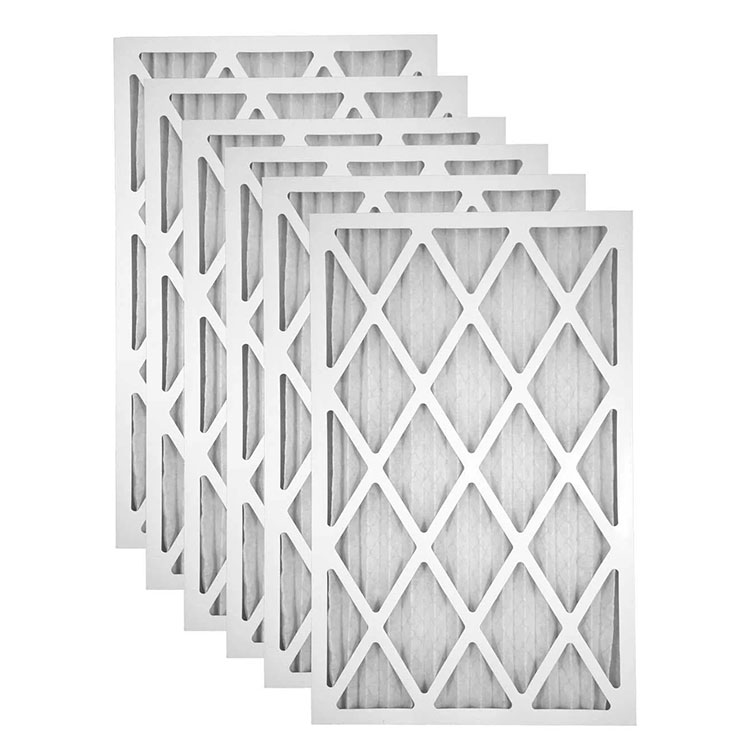

Se coloca un filtro de aire de caldera HVAC entre la entrada de aire y el serpentín de calefacción de su sistema. Su trabajo es importante tanto para la salud de su familia como para la salud de su unidad HVAC. El filtro de caldera adecuado puede ayudar a eliminar las partículas dañinas del aire y, al mismo tiempo, garantizar que todo funcione sin problemas.

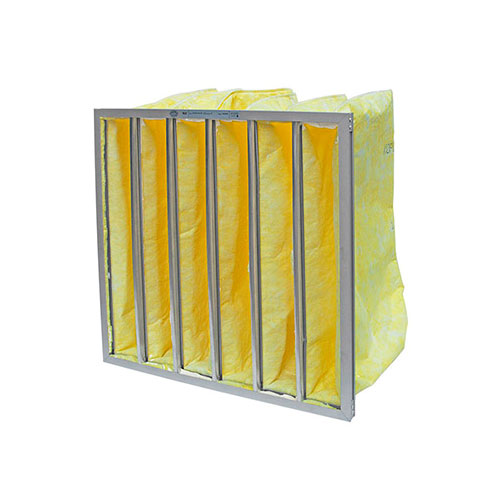

Leer másEnviar ConsultaUn filtro de bolsa de bolsillo de alta eficiencia es un filtro de aire que se utiliza en sistemas HVAC y cuenta con de 3 a 12 bolsas internas. Los filtros de bolsillo están diseñados principalmente para reducir el polvo y otras partículas en el aire, filtrando eficazmente al menos el 90% de estas partículas del aire.

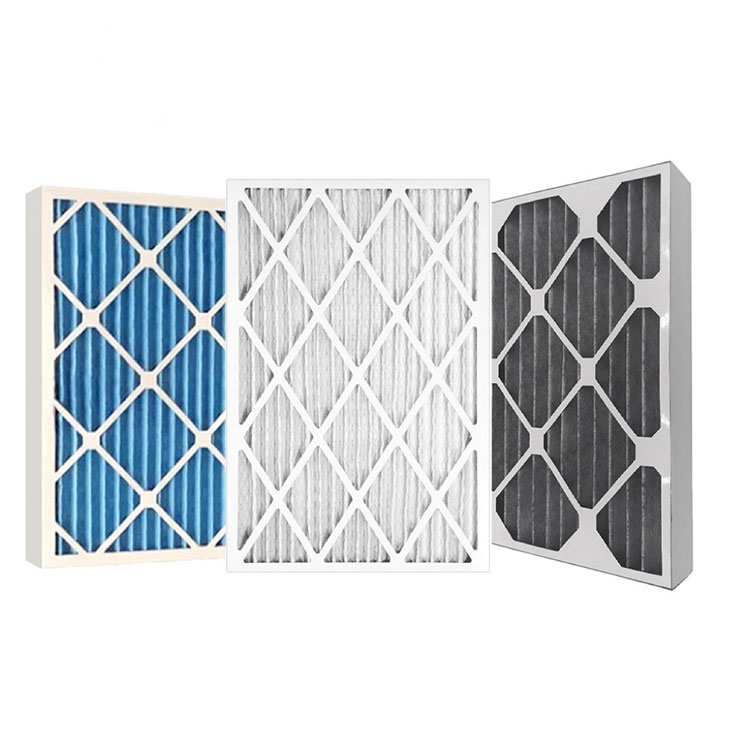

Leer másEnviar ConsultaEl filtro de aire del panel plisado primario es para partículas de 5 μm de diámetro. Calidad década de tela no tejida, fibra de vidrio o fibra de poliéster importada como material de filtro, forma plegada de cuña para aumentar el área de filtración, con marco de cartón resistente a la humedad de alta resistencia, hecho de estructura de placa.
Leer másEnviar Consulta
